- Magnification: 3-18x
- Objective Lens Diameter: 44mm
- Focal Plane: First Focal Plane
- Eye Relief: 3.8"
- Field of View: 39.3' - 6.7' @ 100 yds
- Turret Style: Exposed Elevation Capped Windage
- Tube Size: 34mm
- Adjustment Graduation: .1 MRAD / ¼ MOA
- Travel Per Rotation: 10 MRAD / 25 MOA
- Max Elevation Adjustment: 45 MRAD / 154 MOA
- Max Windage Adjustment: 18 MRAD / 62 MOA
- ParallaxSetting: 10yds. - ∞
- Length: 13.3"
- Weight: 26.6 oz

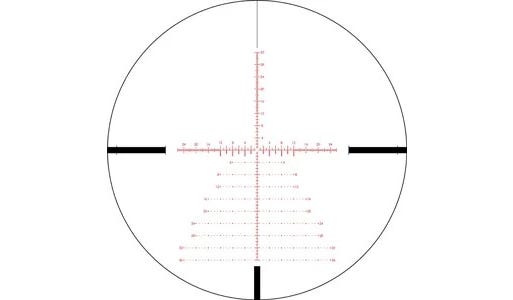

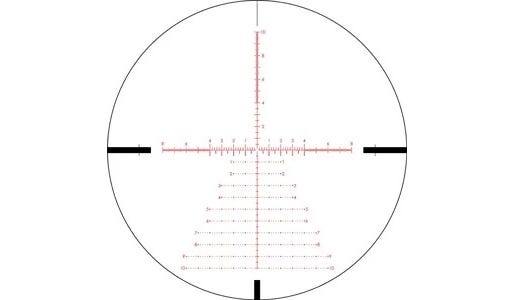

- First Focal Plane Reticle
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
Provides precise aiming under low-light conditions.
Patented streamlined design offers a toolless zero stop for rock-solid return to zero after turret adjustments.
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
- Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces
provide increased light transmission for greater clarity and low-light performance.
Ultra-hard,scratch-resistant coating protects exterior
lenses from scratches, oil and dirt.
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Low Glare Matte Black Anodize
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
Designed to withstand harsh weather conditions.
Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Designed to withstand the highest levels of impact.
Allows quick and easy reticle focusing.
The included throw lever can be installed for quick and easy magnification adjustments.
